Project Name
How-To: Change your rear shoes

Project Description
Replacing your rear brake shoes

Skill Level
Moderate/Two Beers

Project Vehicle
Make: GMC
Model: Canyon Z71
Year: 2005
Engine: 3.5L
Power windows: Yes
Sun Roof: No

Tool Needed
See Picture Below

Project Time
Needs Updated

Project Cost
Needs Updated

Additional pictures:

rangerbob_99/Canyon/Drum Brakes - Photobucket - Video and Image Hosting

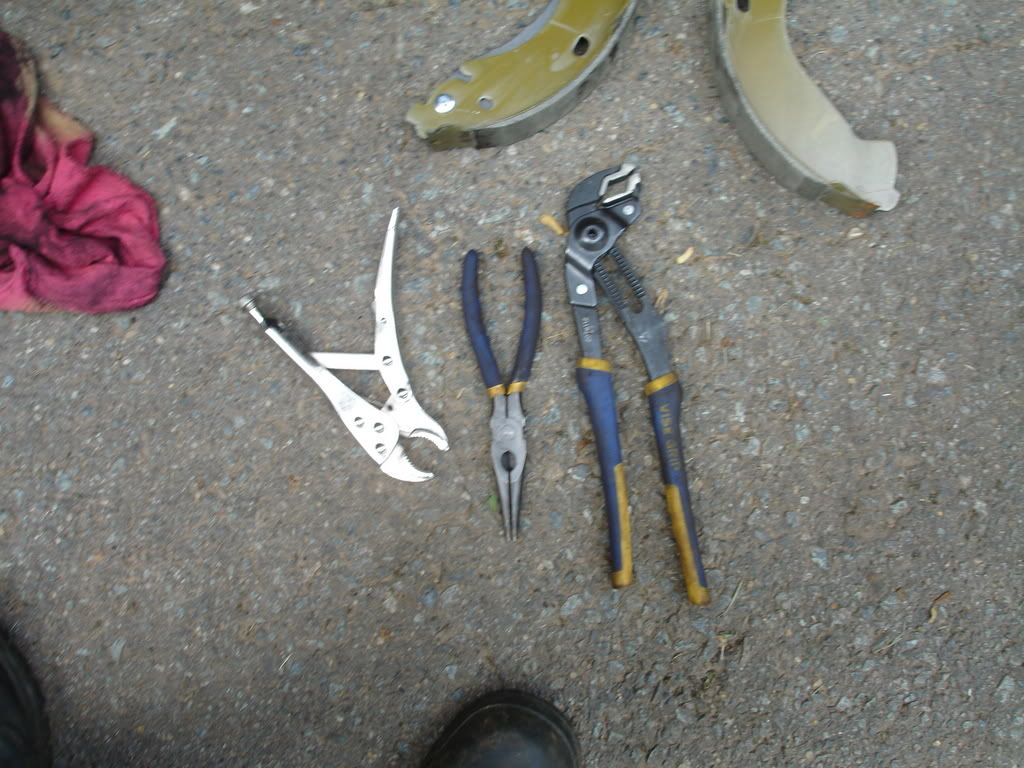

Tools Needed:



Remove Wheel:

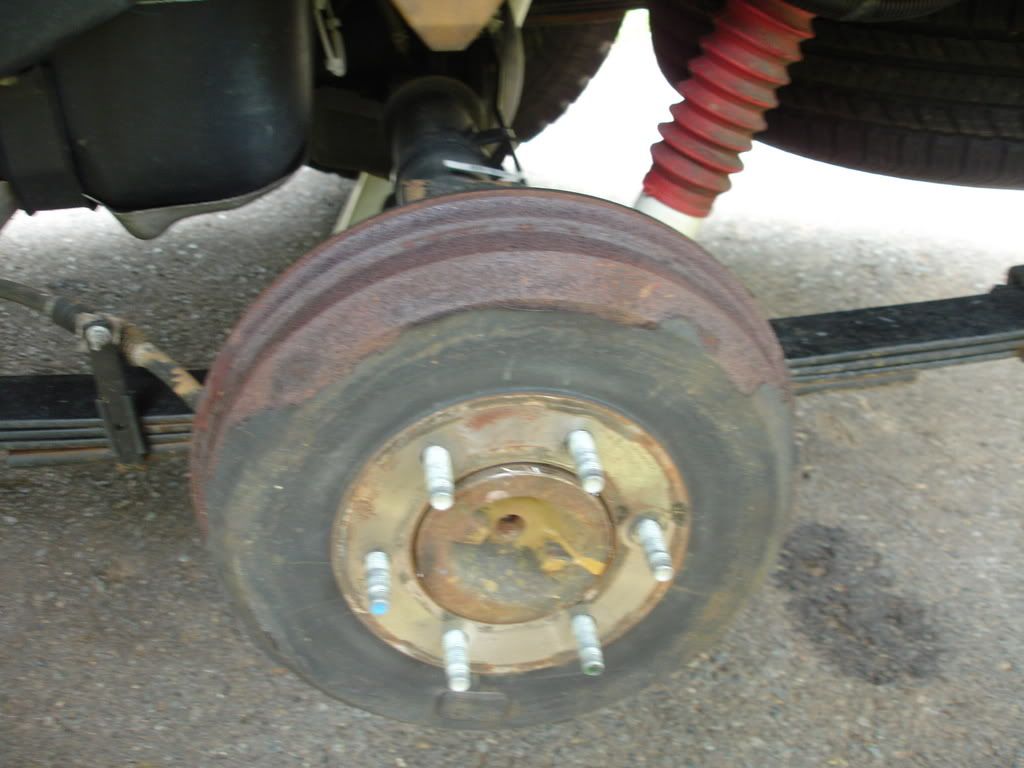

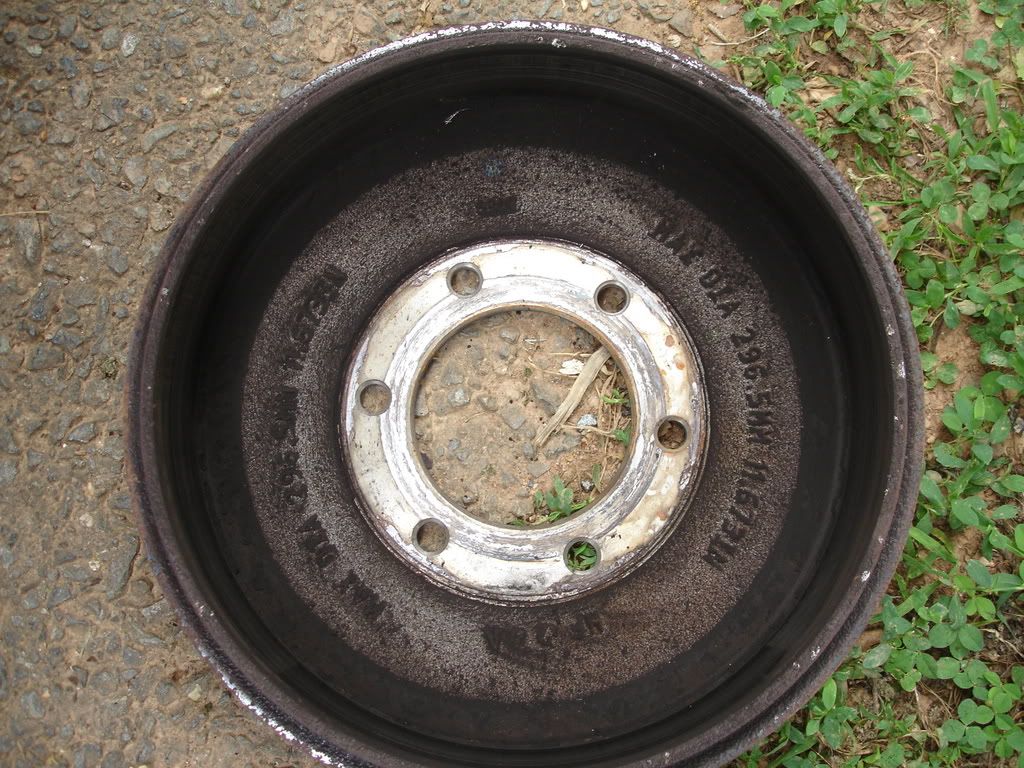

Remove Drum ( you may have a star washer on some of the lugs - just rip this off and throw it out. The wheel holds it on just fine ):

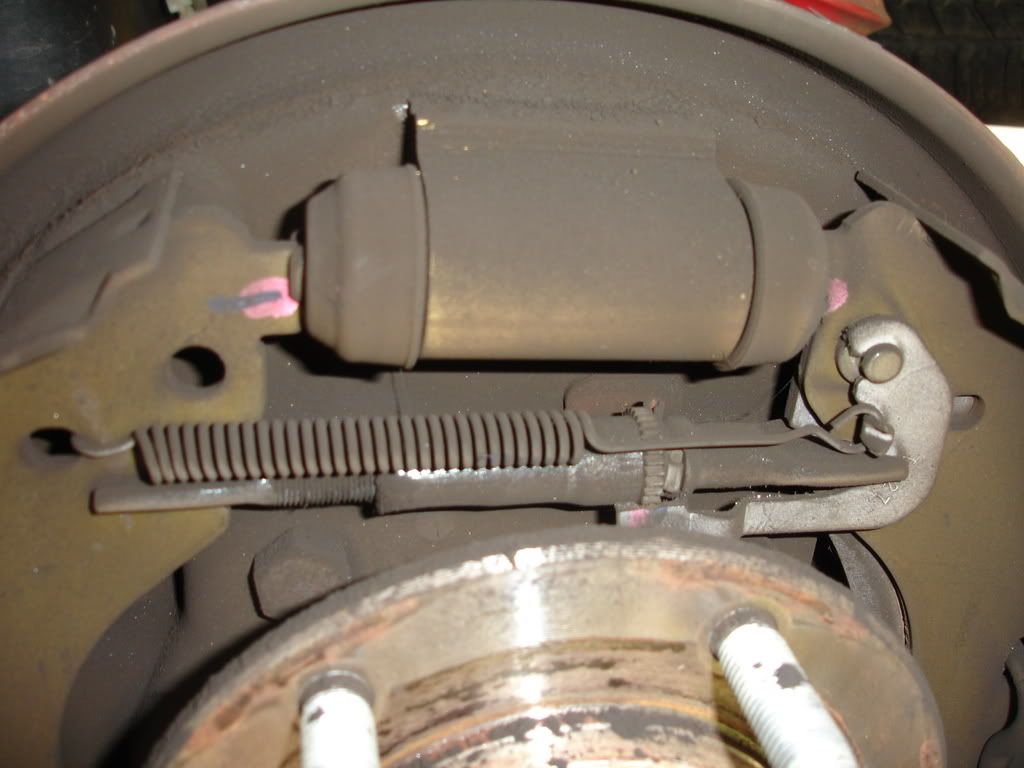

Adjuster and piston:

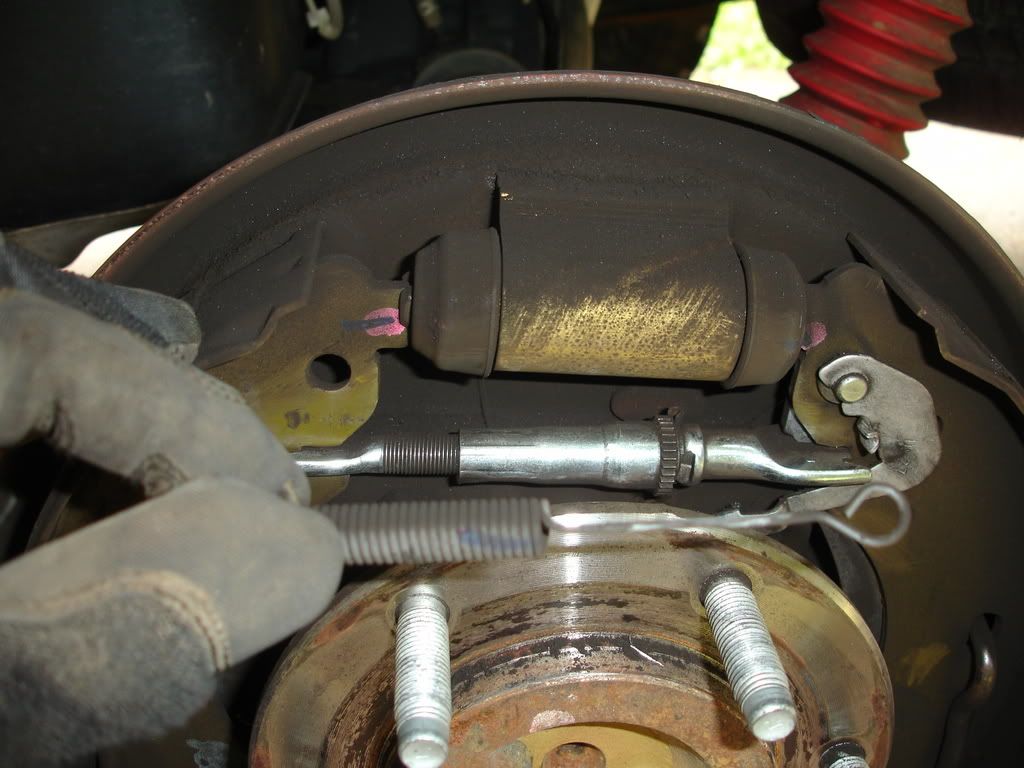

Remove Spring and then the Adjuster mechanism ( two pieces ) by rotating counter-clockwise ( I think - you'll figure it out or else you should be paying someone to do this for you ) and pulling it out:

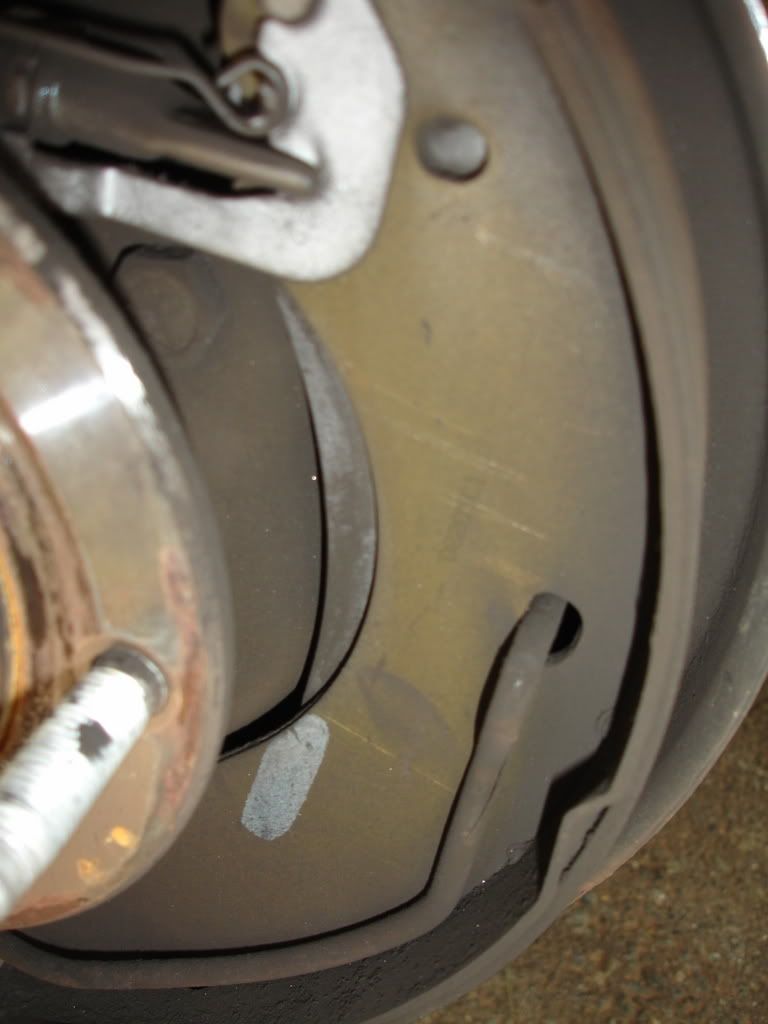

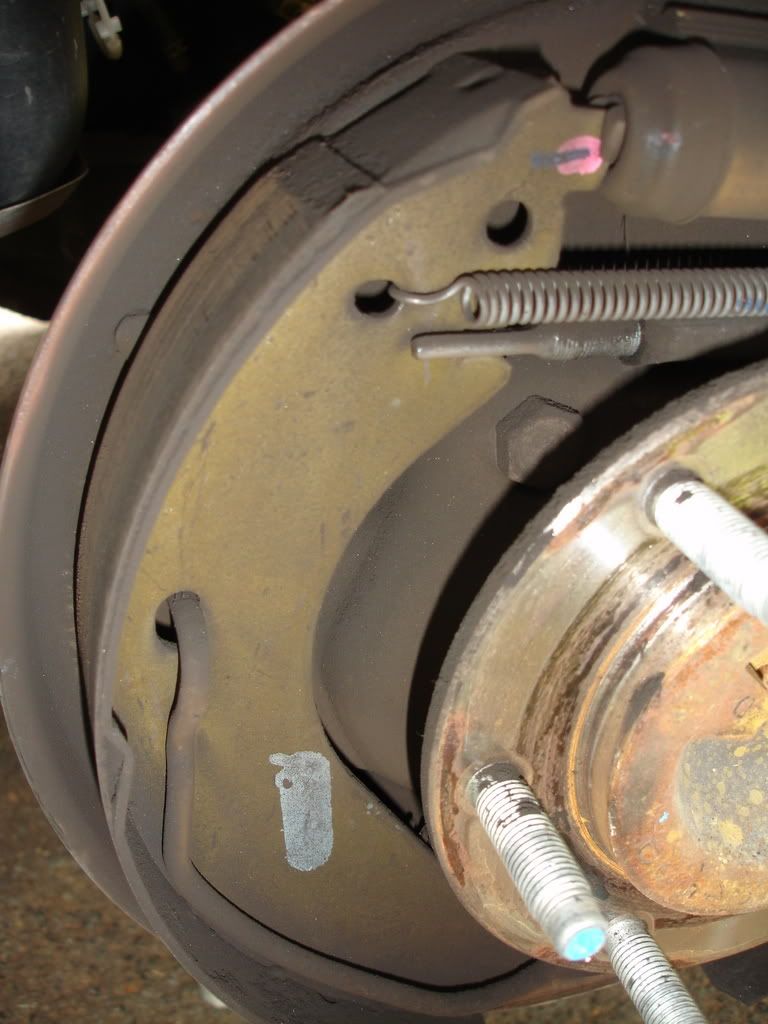

Unhook Horseshoe spring with the big-ass pliers - doesn't matter which side you do first:

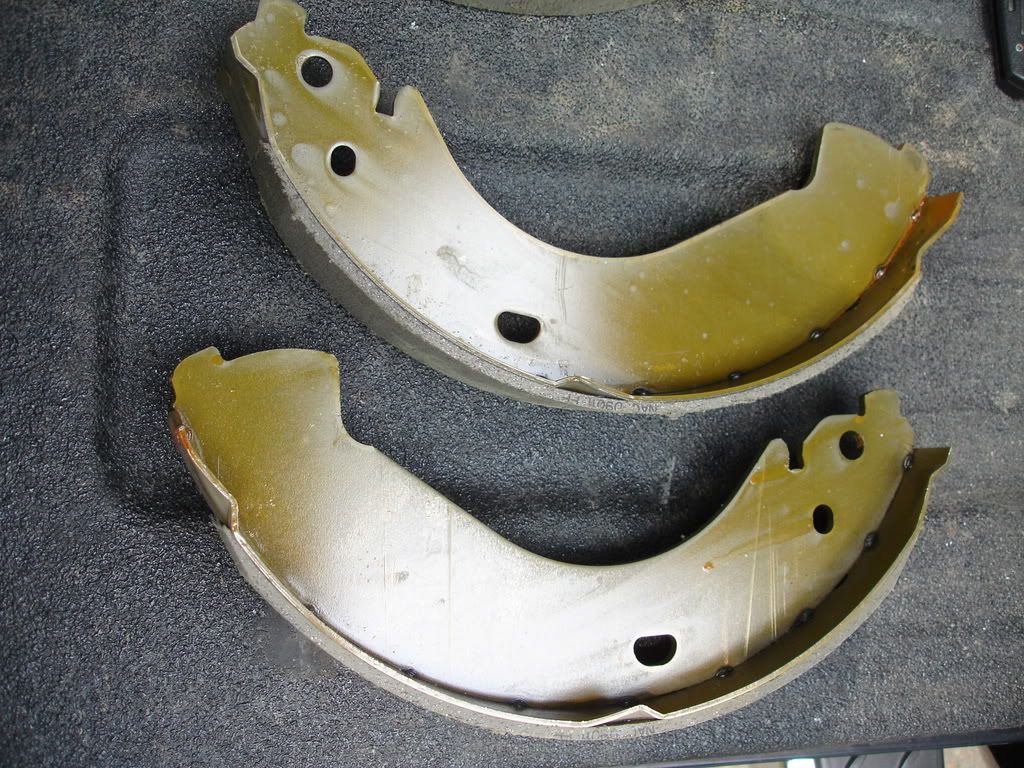

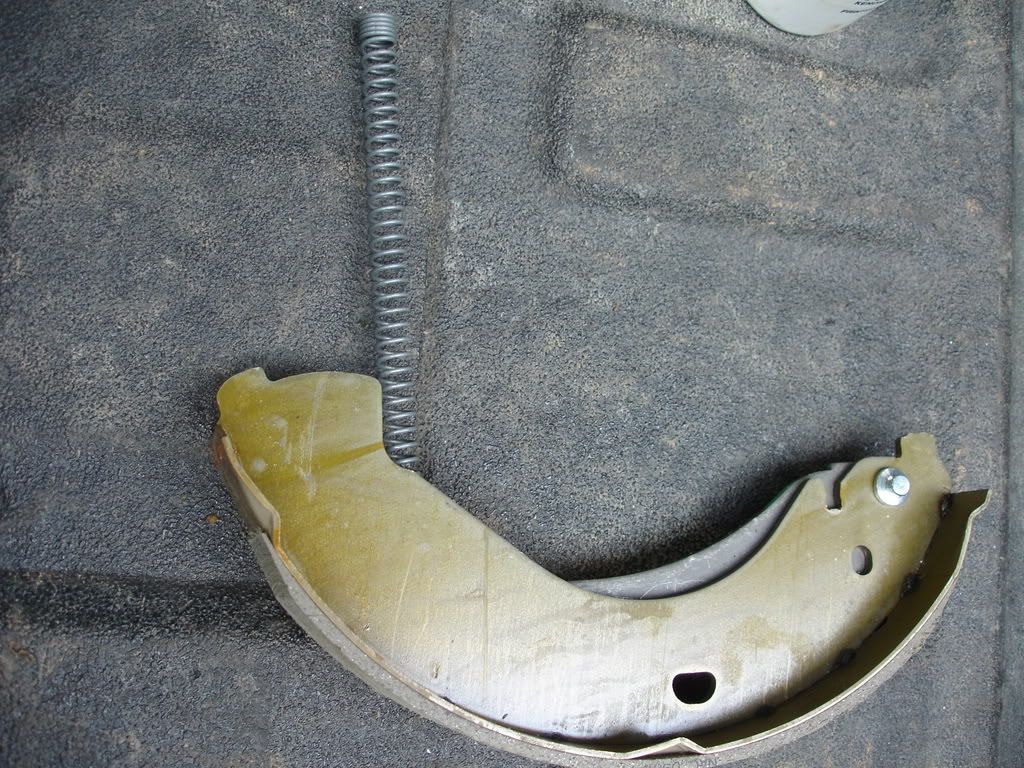

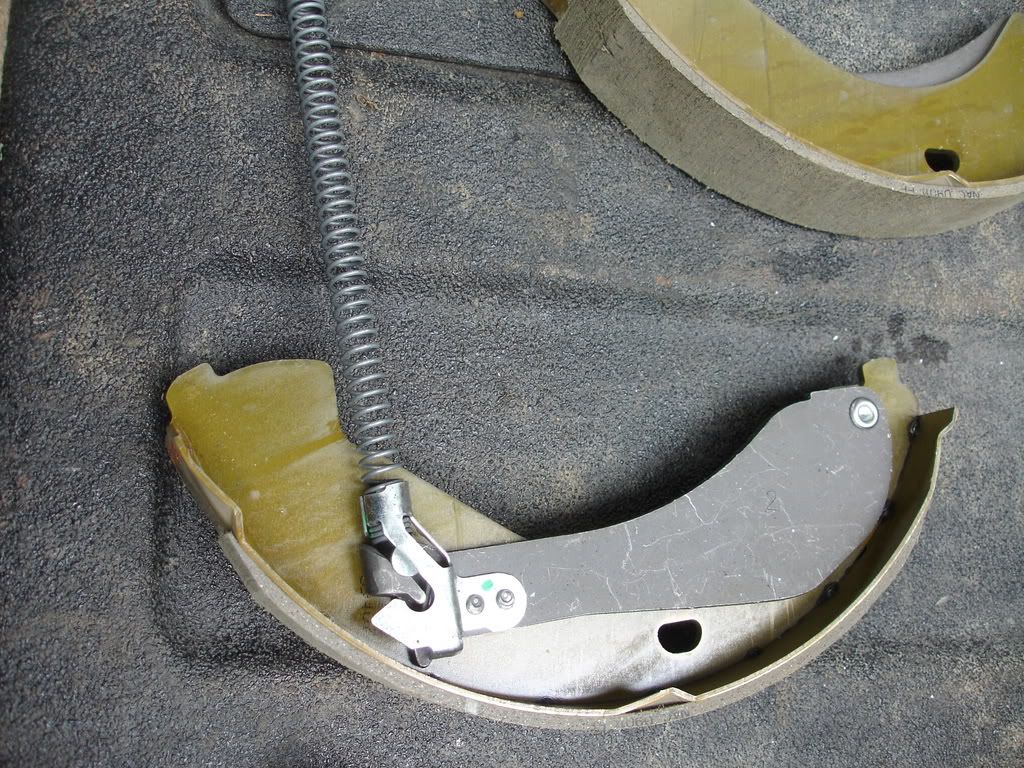

The shoes will now fall out. You will need to use the pliers to help the parking cable unhook from the shoes - I had to bend the tabs on both of the shoes to get the nubbin out. The new ones look like this:

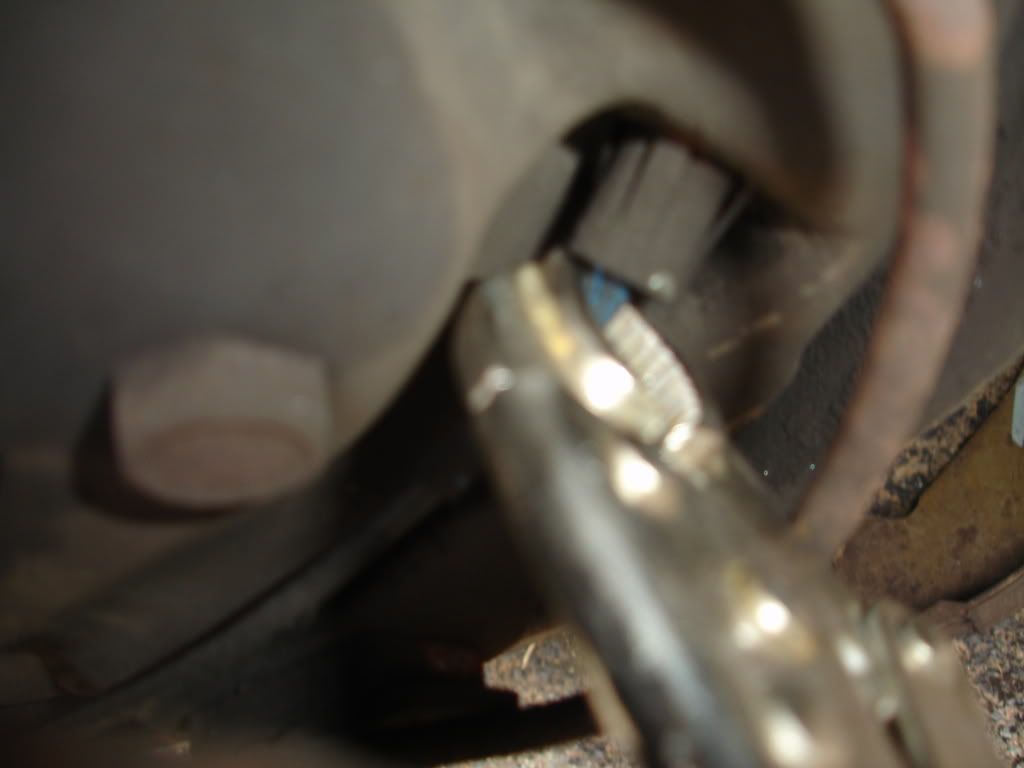

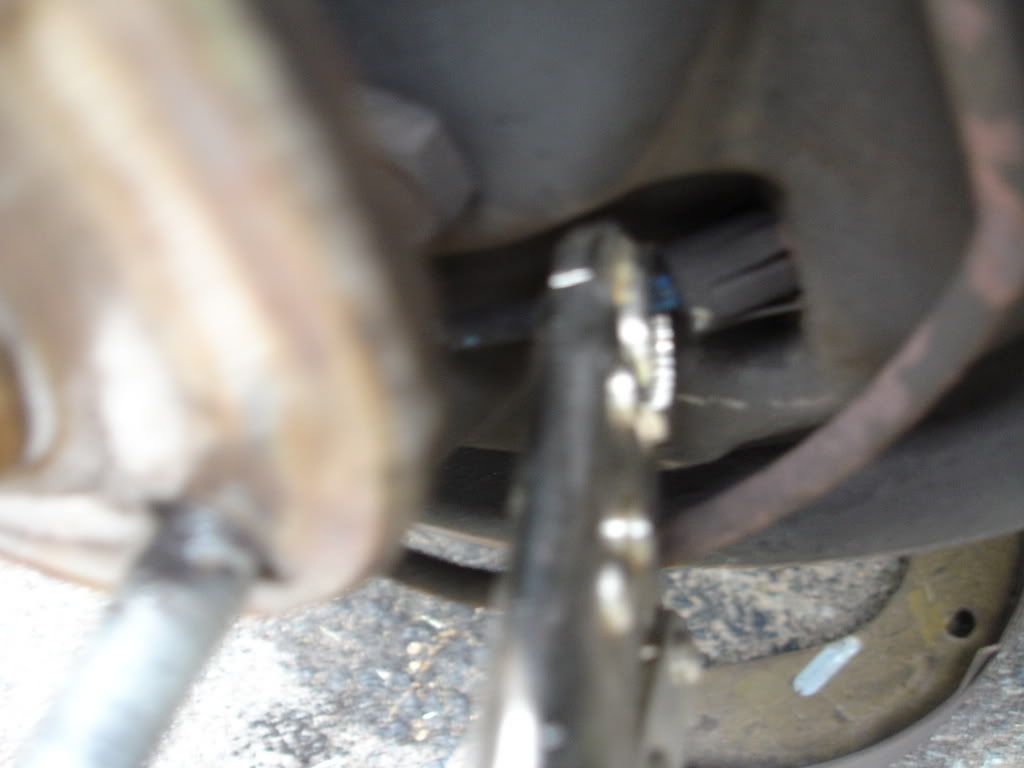

In order to install the parking brake cable you'll need to use the vice-grips to hold the cable while you slide the spring on;




After you've got the parking brake cable reattached - remove the vice grips and install the other shoe. Reattach the Horseshoe spring with the Big-ass pliers (somebody should trademark that - and Big Fucking Hammer also).

Now for the fun part - the adjuster. You need to extend the adjuster so that it puts enough pressure onto the pads or you will have VERY POOR braking for a long time. I did this by rotating it CLOCKWISE and the sticking the drum on until it was difficult to slide on - then I finished assembling the rest of the adjuster ( spring and the little lever arm - then I drove ( CAREFULLY! ) to a parking lot and spent a bunch of time going in reverse while pumping the brakes. This causes the adjuster to finish properly setting the brakes to where they should be.

Make sure you set the adjuster AS TIGHT AS YOU CAN. Sometimes the adjuster does not adjust and you end up having no rear breaking for a long time. Spend a little extra time spinning it and sliding the drums over and you'll find it much nicer. The drum should /just/ slide over the shoes with some persuasion.

Finished Product - you can tell I put the front side of the Horseshoe spring on first and then fought with the bitch to get the read side on:
