A 355nation How To presented by
jackedupcanyon

Project Name
How-to flush your power steering fluid

Project Description
How-to flush your power steering fluid

Skill Level
Easy

Project Vehicle
Make: GMC
Model: Canyon
Year: 2007
Engine: 3.7L
Power windows: Yes
Sun Roof: Yes
Body Lift: Yes

Tools Needed
Channel locks and/or pliers
3/8" clear tubing - roughly 12" or so
3/8" barbed fitting capped on the end
3/8" clear tubing - roughly 3 – 4 ft or so
3/8" barbed fitting on both ends
Milk jug
Drain pan
Power steering fluid (full system capacity approximately +/- 48 fluid oz or so)
Hydraulic lift

Project Time
1 hour or so

Project Cost
~$30 - $40 total give or take

Project Procedure
Step 1 - Locate the power steering pump and fluid reservoir.

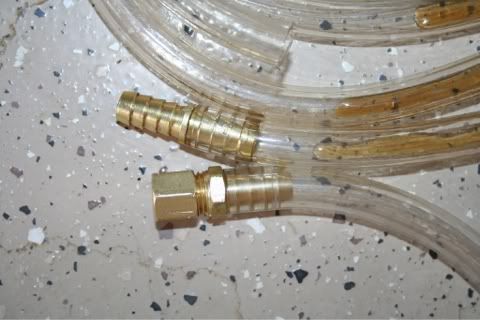

Step 2 - Take your short piece of 3/8" tubing, insert the barbed fitting and cap the end. (Bottom)

Step 3 - Take your long piece of 3/8" tubing and insert the double barbed end fitting at one end. (Top)

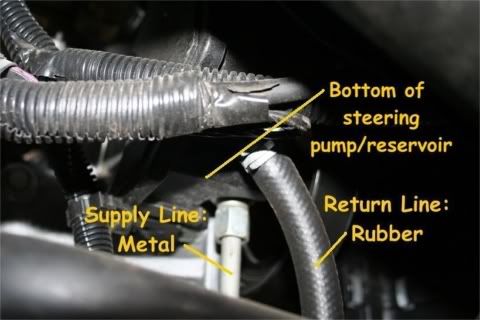

Step 4 - Locate the metal supply and rubber return lines on the steering pump reservoir.

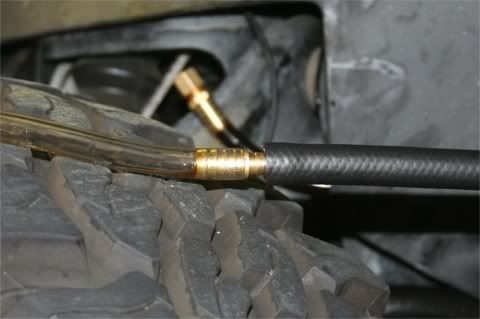

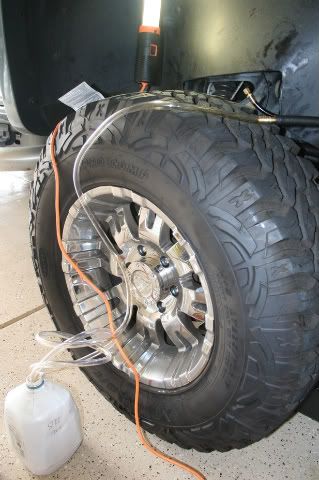

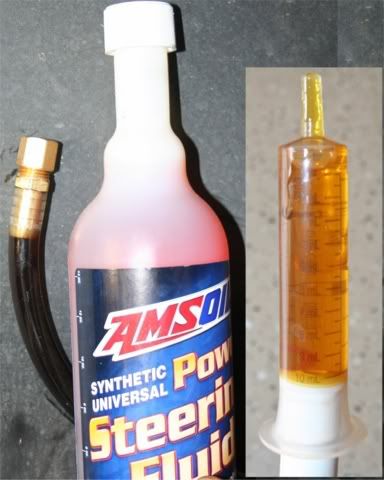

Step 5 - With a drain pan under the truck, disconnect the rubber return line and quickly slide the short piece of 3/8" tubing capped on the end over the return connection on the bottom of the pump/reservoir. This section of tubing will fill up with the old steering fluid in the reservoir. If you have had your truck 2 or more years and have never changed your power steering fluid then it will probably look dirty but that is why you are flushing it. Picture below is with the tubing sticking out under the fender wheel well. The fluid color in the bottle was not accurately shown in the picture so I photoshopped the fluid in a syringe for a better representation. Only 2 years on the steering fluid in the truck and as you can see it was almost black.

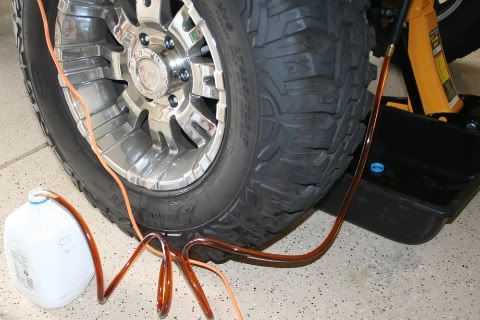

Step 6 - Quickly slide the long piece of 3/8" tubing with the double barbed fitting and slide it over the other end of the return hose tubing. Put the end of tubing with no fitting into a milk jug or other container to catch the old fluid.

Step 7 - Take the cap off the steering pump reservoir and lift the front of the vehicle up where the tires are off the ground.

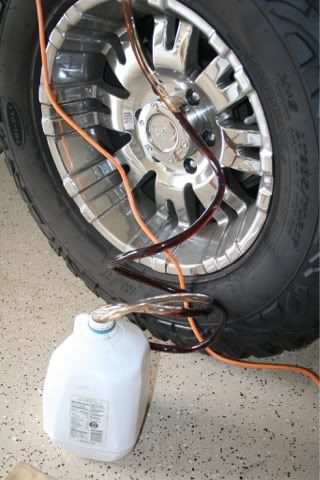

Step 8 - Turn the steering wheel a few cycles back and forth to pump the old fluid out of the system. It does not take many turns. Continue to do this till the fluid starts to spit and sputter.

Step 9 – Add new fluid to the reservoir and turn the steering wheel a few cycles back and forth to pump the new fluid thru the system. Continue to do this till you see new fluid starts to come out of the tubing. The fluid will continue to lighten up as you flush the old fluid out. Do this till you are satisfied that old fluid is flushed out enough.

Step 10 - Quickly disconnect the long tubing from the return line, short piece of 3/8" tubing capped on the end and reconnect the existing rubber return line to the bottom of the steering pump reservoir.

Step 11 - Turn the steering wheel a few cycles back and forth to pump the fluid thru the system. Lower the vehicle and check the amount of fluid in the steering pump reservoir. Add as needed.

Step 12 - Again lift the front of the vehicle where the tires are off the ground and turn the steering wheel a few cycles back and forth to pump the fluid thru the system.

Step 13 - Lower the vehicle and re-check the amount of fluid in the steering pump reservoir. Add as needed. Repeat steps 11 and 13 until the fluid in the reservoir is within the acceptable range.

Step 14 - DONE! Drive the vehicle for a day or so and recheck. Add fluid as needed.



[brewer15650]

Very Cool. Nice write up



[Supermodulation]

Nice write-up and thanks for the info. I may try this!



[opie652003]

Very good, havent thought about doing this but I guess I should now after 49,500 miles. Mine probably looks black



[JaysOnTheEDGE]

while your doing the power steering dont forget your brake fluid and clutch fluid if applicable



[jackedupcanyon]

Thanks. Power steering fluid is often over looked. Thought it could help several members out. You are correct Jay, do not forget the brakes. Brakes and power steering fluid every 2 years!



[Stealth_Canyon]

wow I have never even thought of flushing any of that!! Nice write up man. My truck is three and a half years old but has sat in storage off and on for long periods at a time. I think I only have 22,xxx miles. And that ia with many trips back and forth from Texas to Ohio!



[ssgjurista]

Nice write up on how to maintain an often neglected fluid. :355:



[1BADI5]

Damn something else to do, but needed! Nice write up!



[rangerbob]

Great write up but I can't for the life of my understand what the short tube plugs into. I get that it screws onto the pump but what does the other end do?



[1BADI5]

Great write up but I can't for the life of my understand what the short tube plugs into. I get that it screws onto the pump but what does the other end do?

Yeah turd, when are we going to get together and do some of this stuff and install your GP seats? :lol2:



[PROJECTCANYON123]

wow you just gave me a project to do after work!awesome writeup man



[jackedupcanyon]

Great write up but I can't for the life of my understand what the short tube plugs into. I get that it screws onto the pump but what does the other end do?

Damn. Just noticed your question. Little late I know (sorry). Probably do not need the answer now but the small tube is just a cap to prevent all the fluid in the reservoir from draining out the bottom when you disconnect the rubber return line hose. I did not want the chance of an air bubble working its way into the system so I always kept fluid in the reservoir.



[jonnyk]

Nice writeup. About how many quarts of fluid does it require to do this start to finish? I am thinking about going synthetic for our extremely cold winters.



[05colorado]

i know this has nothin to do w this thread but just curious, what size rim is that?



[jackedupcanyon]

Nice writeup. About how many quarts of fluid does it require to do this start to finish? I am thinking about going synthetic for our extremely cold winters.

Each vehicle I do varies a little but typically it is around 3-4 bottles. Alot depends on how much of the lighter (newer) fluid you continue to pump thru the system to flush out the old. I think I used around 3 bottles (~48 oz) but also typically buy a spare bottle just encase. I also added a power steering fluid cooler (a different how to) at this same time so I ended up using more than 3 bottles.

i know this has nothin to do w this thread but just curious, what size rim is that?

17"



[mililani00]

i may try that cause my turning is diffculnt



[FlyingTomato]

Almost 180,000 miles and NEVER been done. Now I've got something to keep me busy tomorrow night



[GMCanyon08]

Is it ok to add new power steering fluid to the old fluid?



[Namewasdallas]

Great write up OP

I highly recommend going with Amsoil Power Steering fluid like the OP of the tread showed picture, I switched to Amsoil PS fluid and what a difference it made and it's also suppose to last longer and run cooler then other PS fluids. I couldn't find any locally so I had placed a order with Amsoil.
