A 355nation How To presented by
Popgoesdaweasel16

Project Name
How To LED your cup holder.

Project Description
How to LED your cup holder to give some extra lighting and provide a cool accent.

Skill Level
Easy/Moderate

Project Vehicle
Make: Chevrolet
Model: Colorado
Year: 2010
Engine: 3.7L
Power windows: Yes
Sun Roof: No

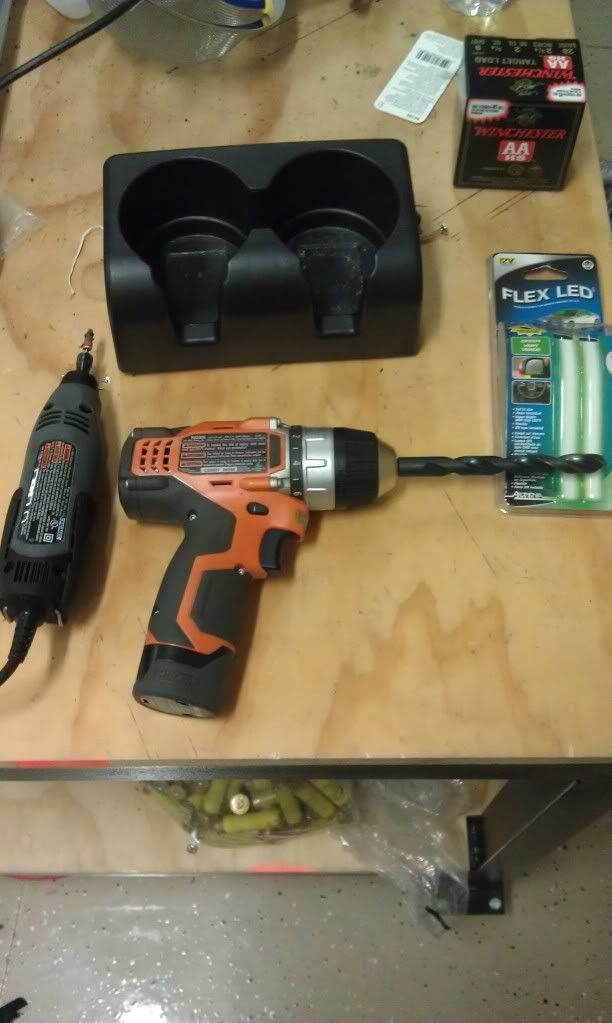

Tools/Materials Needed

• Cup holder.
• Drill with 1/2 in bit and a smaller bit. (Width of LED strip.)
• Dremel tool.
• Two 4 inch LED strips. (One 8 inch pack.)
• Rocker switch.
• Black silicone.
• Soldering iron.
• Wire cutters.

NOTE: This how-to is presented with two wiring options.

Option 1 uses the battery pack that came attached to the LED strip. The option does not require any other power source except the included battery pack.
(This is the option that I used)

Use Option 2 if you want a permanent solution to having your LEDS on without the need for replacing batteries. Please scroll down for option two procedures.

​

Project Time
1 hour or less


Project Cost


FOR OPTION 1

• $4 Rocker switch @ Radio Shack 16A 125V or 10A 250V DPST AC On/Off Round Rocker Switch : Rocker Switches | RadioShack.com
• $16 LED's @ Autozone LED Exterior Accessories | AutoZone.com

FOR OPTION 2

• Rocker switch
• LED strips
• $3 5 amp fuse @ Radioshack 5.0-Amp 250V _x_ Slow-Blow Fuse (4-Pack) : Slow-Blow Fuses | RadioShack.com
• $3 Inline Fuse holder @ Radisoshack 5-Amp Inline Fuse Holder for 5x20mm Fuses : Fuse Holders | RadioShack.com

OPTION 1 STEPS.

1. Using wire cutters (not pictured) cut the 'try me' button off (about an inch down from it) the LED strip.


2. Drill hole into drivers side of cup holder. Using the dremel tool, grind the edges of the hole so the switch can fit. Keep grinding and adjusting as needed.




3. Tuck the battery housing up into the cup holder, right above the hole you just drilled.




4. Pull the red wire from battery pack and black/white wire from LED strip through rocker switch nut through backside of drilled hole in the cup holder.




5. Use the smaller drill bit (a bit wider than the width of the LED strip) and drill a hole into cylinder part of cup holder. Do this to both sides *I had already siliconed it in place before I took the picture*




6. Peel off the 3M backing tape from the LED strips and stick them on the inside of the cup holder just above the little ridge on the bottom.




7. Solder the red wire from battery pack to one side of the rocker switch. Solder black/white wire (attached to LED strips) to other side of the rocker switch.


8. Protect the electrical connections with electrical tape or heat shrink.


9. Tuck the wires and everything back into the cup holder. It should fit perfectly.




10. Apply a dab of black silicone where the LEDs come into the cup holder.




11. Enjoy your new illuminated cup holders!





OPTION 2 STEPS

1. Using the wire cutters (not pictured), cut the whole battery pack and switch off at recommended spot from manufacturer. (Labeled on wires)


2. Drill a hole into drivers side of cup holder. Then using the dremel tool, grind the edges of the hole so the switch can fit. Keep grinding and adjusting as needed.


3. Pull power wire from positive side of battery inserting a 5 amp in-line fuse.

   NOTE: Do not install the fuse yet bringing the wire through the firewall.


4. Run power wire under door sill (gently lift up door sill, it should barely flex). Keep running wire under the door sill and bring it up underneath the seat to underside of cup holder.

   NOTE: Don't forget to leave enough wire so that the seat can be adjusted without ripping out the wire


5. Pull ground wire from either negative terminal of battery and go through firewall or you could also attach it to a bolt underneath where your footwells are.




6. Run the negitive (-) ground wire underneath door sill just like the positive (+) power wire. Continue up under your seat to bottom of cup holder.

   Note: Don't forget to leave enough wire so that the seat can be adjusted without ripping out the wire


7. Pull the positive (+) wire through rocker switch nut through backside of drilled hole in the cup holder.




8. Using a drill bit that is a little wider than the LED strip, drill a hole right above the bottom lip of cupholder. Do this to both sides and pull LEDs through your drilled holes. Then peel off the 3M backing tape from the LED strip and stick the strip just above bottom ridge.




9. Take the positive (+) wire that is connected to your battery and solder it to one side of the rocker switch.




10. Take the black/white wire that is connected to the LED strip and solder it to other side of switch.


11. Solder the ground wire to solid black wire that is connected to LED strip.


12. Protect the electrical connections with electrical tape or heat shrink.

13. Install the rocker switch into cup holder and tighten the plastic nut that came with the rocker switch.


14. Install a 5 amp in-line fuse holder on the postive feed wire.


15. Turn rocker switch to ON and check LEDs.


16. If LEDs work then silicone holes where LEDs go into cup holder and let sit overnight.

Now enjoy your illuminated cup holders!



[rshadd]

Nice how-to. Thank you for contributing to the how-to area.



[edvocho]

That's super pimp!



100% free webcam site! | Awesome chicks and it is absolutely free! | Watch free live sex cam - easy as 1-2-3



[captainrab]

Good job Weez. Appreciate the hard work getting this to print. Medal well deserved



[Optrix]

Thanks guys, it was fun as heck!



[06Stinger]

Looks great! Now where can I get another cup holder?



[chevy911]

very nice, would b awesome with a circle piece of mirror to sit in the bottom too



[BlackZQ8]

Sweet addition, might be added to the "to do" list


Sent from my Autoguide iPhone app



[Blue15ColoradoLT]

nice idea.

Here was my first version:

Then I did these:

Then I added a toggle switch:

Ran a fused wire from the battery:

Positive and negative wires run under the carpetting:

In case I had to remove the console for whatever reason, I made some connector wires so the whole thing is not completely hard wired to the truck:

The internal wiring for the cup holders to the switch:

VOILA!!! We has power:



[moody1]

Nice write up!!



[blackcanyonZ85]

Great write up! Here's a picture of mine that I custom did . I bought LEDs, resistors, and some small wire then drilled holes in my cups older and installed them. Turned out great!


Sent from AutoGuide.com Free App



[2005xtreme74]

Ok so how do I get my cup holders out? Do I have to take out the armrest with the cup holders seeing how its all one piece?



[blackcanyonZ85]

Depends on what kind of center console you have. Mine just slides right off. There's a lever on the bottom of mine that I have to pull up


Sent from AutoGuide.com Free App



[2005xtreme74]

Here's a pic of my cup holders

Sent from AutoGuide.com Free App



[Foxy923]

Great write up. Just finished both cup holders in my crew cab.



[Optrix]

Good deal! What color are they?



[Foxy923]

One is blue the other is green. I used 12" strips with the last section cut off to fit all the way around.



[Optrix]

Both front and back seats?



[Foxy923]

Yes, blue up front, green out back.



[Optrix]

Q- how did you wire up your back ones? With a switch? Or one main switch on the front cup holder?
