Captain of the Enterprise
Joined
·
1,486 Posts

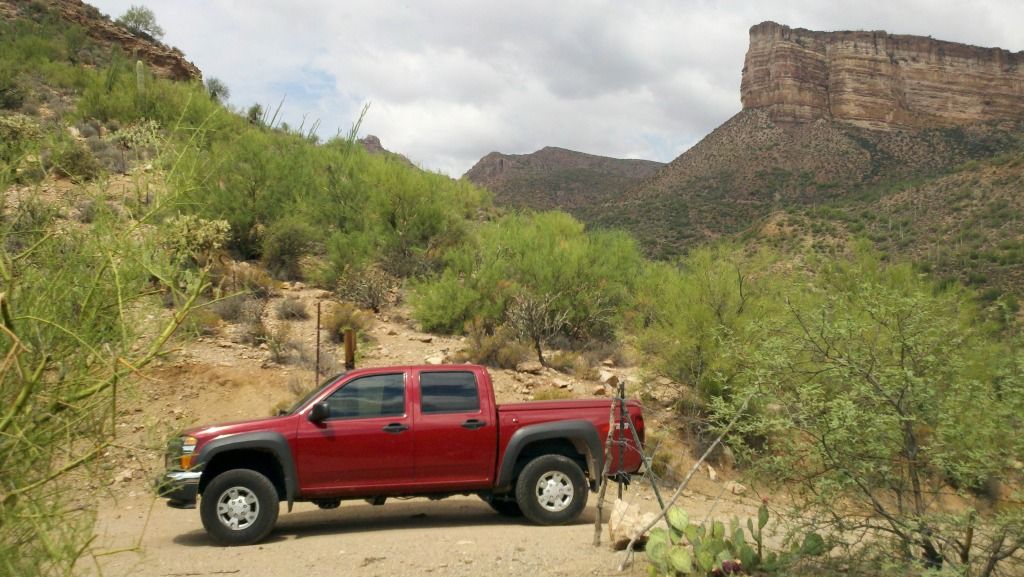

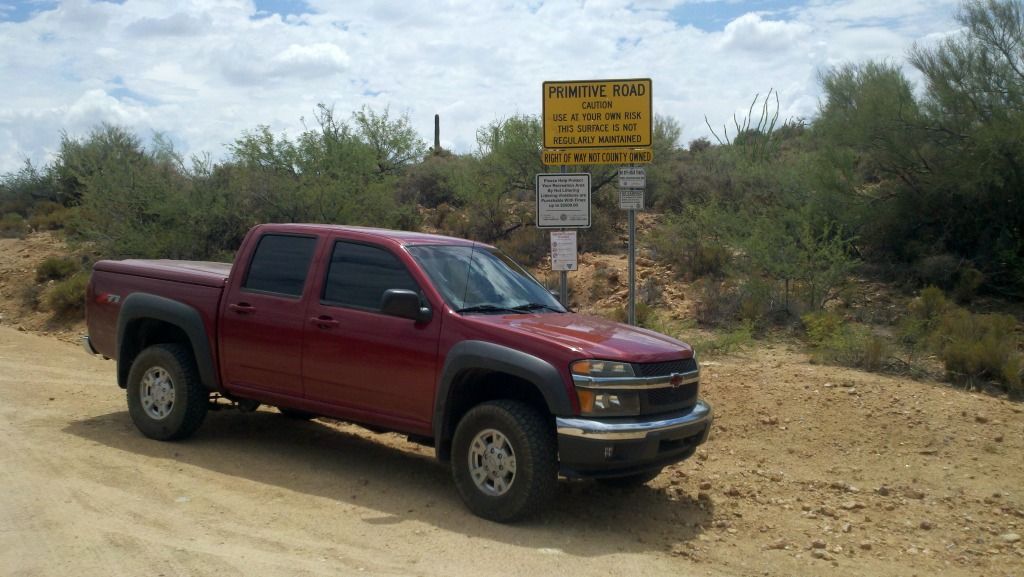

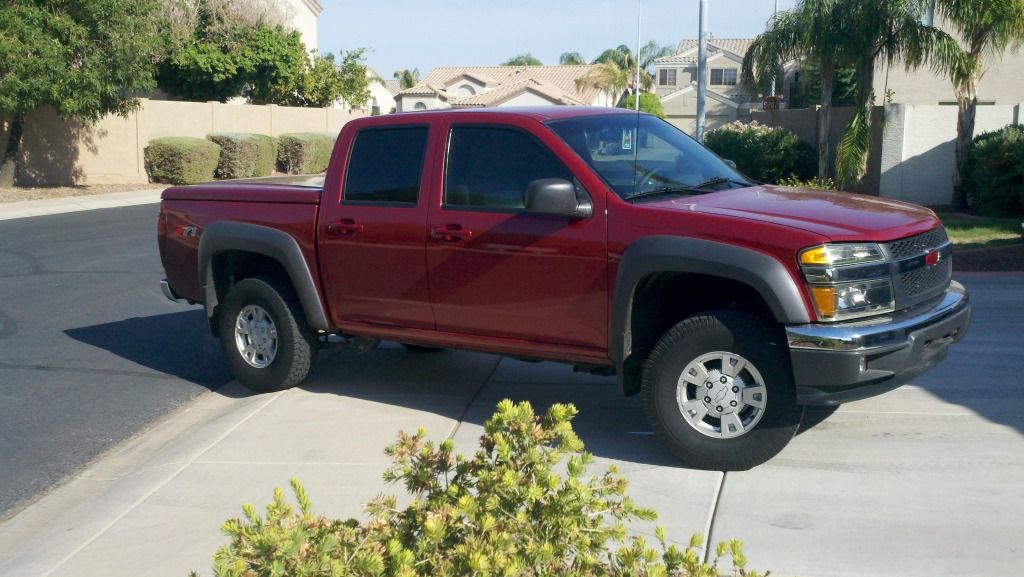

Sub-model: Z71 2WD
Tire Size: Stock Z71
Rim Size: 15"x7" (Stock Z71)
Wheel Spacers: None
Lift Height:
Lift Components: 2.5" Crank, 2" Shackles, Extended Rear Shocks
Flares/Fenders: Z71 flares
Trimming Requirements: None
Any Rubbing: No, Where

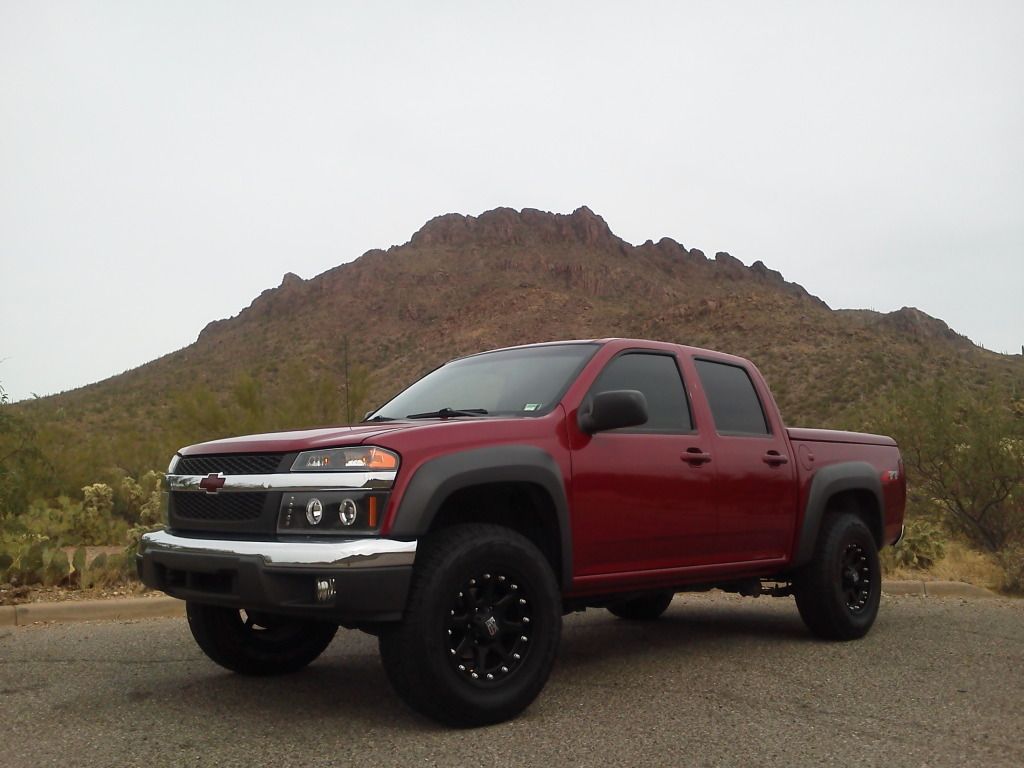

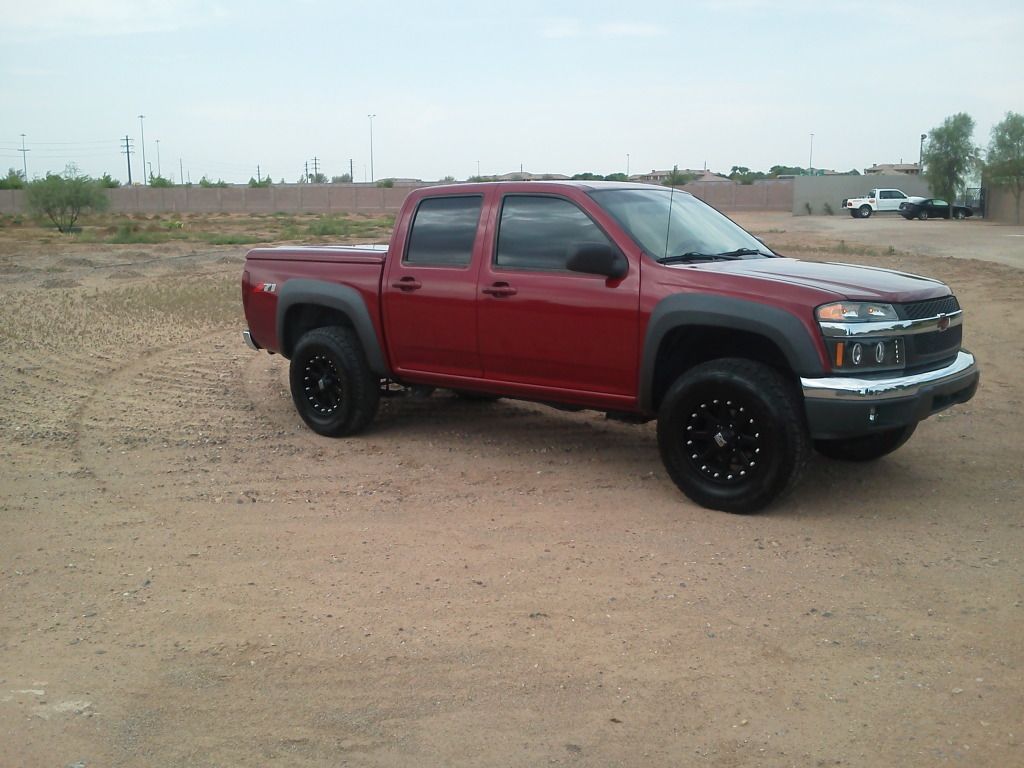

Sub-model: Z71 2WD
Tire Size: 265 x 70 x R17 31.7" diameter (Bridgestone Dueler A/T Revo2's)
Rim Size: 17"x9" 4.5" Backspace KMC XD Addict Painted Black
Wheel Spacers: None
Lift Height:
Lift Components: 2.5" Crank, 2" Shackles, Extended Rear Shocks
Flares/Fenders: Z71 flares
Trimming Requirements: Valance, Mud Flaps (Stock)
Any Rubbing: No, Where
Pictures:





Build Thread Link: http://www.355nation.net/forum/projects-build/57728-stock-shock-cherrys-build.html


·
Registered
Joined
·
627 Posts
Sub-model: Z85 SLE Extended Cab 2WD
Tire Size: General Grabber AT2, 31x10.5x15
Rim Size: Pro Comp Xtreme Crawler 52 Series 15x8, 3.75 backspacing, -19mm offset
Wheel Spacers: None
Lift Height:
Lift Components: 3” Spindles, Slick & Dirty Motorsports Stage 3 Mid-Travel Kit, 6 inch F.O.A. 2.0 Coilovers with Remote Resi, 14" Eibach Springs, Extended Z71 Brakelines, Adjustable Limit Strap Clevis (Filthy Motorsports), Limit Straps (Kartek)
Flares/Fenders: Fiberglass Fenders (Trailer Products Front Fenders), Pulled Bedsides
Trimming Requirements: None
Fab Work: Custom Front and Rear Tube Bumper and Tire Rack (NuTech Racing)
Any Rubbing: No
Other Important Details: Rear Suspension completely stock (for now)
Future Plans: 14 inch F.O.A. 2.5 Smooth Bodies, Deaver Springs, 10 Inch Shackles (Solo Motorsports), Bedcage.
Build Thread: http://www.355nation.net/forum/projects-build/65786-dirtybirdys-build.html





Front Suspension Components:

F.O.A. 6 x 2.0 Coilovers with Remote Resi with 14" Eibach Springs

3" Spindles

Slick & Dirty Motorsports Stage 3 Mid-Travel Kit


·
Nation Affiliate
Joined
·
2,074 Posts
Vehicle Info: 200 Z85 Crew Cab 2wd
Tire Size :33x12.5r15
Rim Size :15x8 4" bs
Lift Height (hub to fender measurement )
Lift Components :CST 5" Spindle, Tube UCA, FOA Coilovers, Procomp AAL, Fabtech Shackle
Flares/Fenders : mcniel racing fiberglass fenders and bedsides
Trimming Requirements : cab body mount cut 1"
Any Rubbing :none
Build Thread: http://www.355nation.net/forum/proj...teveo13-build-thread-updated-1-22-13-a-5.html







********CLICK FOR VIDEO***********


·
Registered
Joined
·
347 Posts
•Sub-model (z85,Sl)
•Tire Size (285/65/18=32.6x11.2x18)
•Rim Size (18x9 Kmc Monsters, offset -12, backspace 4.53”)
•Wheel Spacers ( NONE)
•Lift Height (Front 27.5”)(Rear 26”)
•Lift Components (4" Skyjacker W/ soft ride rear springs, Smaxx keys 2”, Smaxx shackle 1.5”)
•Flares/Fenders (Stock fender, z85 flares)
•Trimming Requirements (NONE)
•Any Rubbing (Yes a little only in front, at full lock and suspension fully compressed)
•Build Thread Link (NO)
•Other Important Details (Heavy Bumpers)




·
fortune's a mistress
Joined
·
934 Posts
2006 GMC Canyon Z85 4X4
Pro Comp Rockcrawlers - 17X9 | 4.25" BS | -19mmoffset
BFG Goodrich Mud Terrain KM's 35x12.50R17
5" CST subframe drop in the front, and 2"AAL + 2" KrFab Lift Shackles in the rear
Bushwacker Fender Flares
Back corner of the flares, did a little trimming.
Bottom of the flares in the front/back and cut the bodymount.






rear/passenger fender (back)

rear/passenfer fender (front)





·
Registered
Joined
·
613 Posts
Sub-model: Z85 2wd 3.5L Auto
Tire Size: 265/50/R20 (30.4"x10.4"X20")
Rim Size:Enkei WT4 20x8.5 (15 offset)
Wheel Spacers: None
Lift Height center of hub to fender: Front - approx 21.5", rear approx 21"
Lift Components: Front - 2.5" Velocity Coil Spacer, Rear - 2" Shackles
Flares/Fenders: None mounted yet.
Trimming Requirements: No, lower lip was removed though but for aesthetics
Any Rubbing: Yes, not horrible but a decent amount at full lock on frame
Pictures:




·
Premium Member
Joined
·
2,160 Posts
Sub-model (2004 Z71 2wd)
Tire Size (285/70/17 Tread Wright Guard Dogs)
Rim Size (17x8 4.5 back spacing)
Lift Height (see attachment this is from usasm not sure how it was measured but its the only number i have since it has been dropped since then)
Lift Components (FRONT: 3in ebay spindles modded for z71, 3 TB inch crank 1.5 body lift)
(REAR: SOA with procomp aal)
Flares/Fenders (mcneil fiberglass fenders)
Trimming Requirements (cut body mount)
Any Rubbing (no)
Build Thread Link
http://www.355nation.net/forum/projects-build/52551-ivans-355-yoyo.html
Other Important Details
i had modded jeep front bumper may have rubbing if using stock one
Pictures


Attachments

·
I Vanquish Boredom
Joined
·
1,581 Posts
Wheels and Tires (Very obvious which is which in pictures)

16x8.5" 18mm offset MB Chaos 6 w/ 265/75R16 BFGoodrich Mud Terrain KM2's
18x9" 25mm offset KC Addict w/ 285/60R18 Nitto Terra Grapplers

Suspension/Drivetrain

Readylift Hummer H3 Torsion Keys (2.5" crank)
SuspensionMaxx Lift Shackles (2")
Upper Ball Joint Flip
Thicker CV Boots (I'm not willing to lower an aluminum diff)
I've also done some very discreet fender trimming. I can run my KM2's (~32x10.5" equivalent) anywhere, with or without my swaybar connected and not rub. I can run my Terra Grapplers (~32x11.5" equivalent) with no rub on the street with the swaybar connected, though they'll very slightly graze the rear of the fender while wheeling (not even hard enough to make me remotely concerned).







Edit: Cab mount and swaybar clearance with the 285/60R18 Terra Grapplers on level ground (suspension not articulated).



·
Registered
Joined
·
36 Posts
•Model: 2005 Z85 Work Truck (strut front end) 2wd
• Tire Size: BFG All-Terrain 225/75/16 (10 ply(E)-may make a difference in overall height?)
• Rim Size: Hummer H3 Wheels (16x8?)
• Wheel Spacers: None
• Lift Height: Stock
• Flares/Fenders: Stock
• Trimming Requirements: None
• Any Rubbing: Slight on sway bar at full lock

Almost perfectly flush with outside of fenders. (except for my dented rear one)





Attachments

·
Premium Member
Joined
·
18,008 Posts
Sub-model - z71 4x4
Tire Size - 295/70/17
Rim Size - 17x7.5" Sierra
Wheel Spacers - 1.5"
Lift Height 41.25" opps, I'll get the one you asked for.
Lift Components - SMAXX Shackles, Diff spacers Shock spacers 1.5" BL and keys
Flares/Fenders - OEM Z71 flares
Trimming Requirements - body mount and bumper valance
Any Rubbing - No
Build Thread Link - NA


Attachments

·
Premium Member
Joined
·
19,135 Posts
Sub-model : Z71 2WD
Tire Size : 35x12.5-18
Rim Size : 18x9 +10mm offset
Wheel Spacers : 1.5" spacers
Lift Height : 39.5" (from memory)
Lift Components : 5" CST 4x4 kit w/AAL, 2" shackle, 3" body lift, 1" crank
Flares/Fenders: Z71 stock flares
Trimming Requirements : removed lower valance, trimmed front bumper plastic, trimmed flare/wheel well plastic on the back of the front wheel wells, cut body mount
Any Rubbing: No
Build Thread Link : Not all encompassing - http://www.355nation.net/forum/proj...ct-paradox-finally-complete-05-15-2012-a.html
Other Important Details - To turn the tires at highway speeds, there was some in-depth tuning done by AVT for the special attention this truck required with all the changes. However, it is possible to make them run as they should with this big of a rim/tire/lift combo.
Pictures (If possible: side profile, other related tight clearances while turning / flexing THUMBNAILS PREFERRED!)


Attachments

·
Registered
Joined
·
114 Posts
  • Sub-model: 2005 z85 2wd
  • Tire Size: 31x10.5r15
  • Rim Size: Summit Racing 15x8, 3.75in backspacing, -19mm offset
  • Wheel Spacers: None
  • Lift Height: 2.5" front / 1.5" Rear
  • Lift Components: Smaxx 2.5" Strut Spacer, Smaxx 2" shackle
  • Flares/Fenders: None
  • Trimming Requirements: Grinding on body mount to match bump stop extender, see in picture below
  • Any Rubbing: No
  • Other Important Details: None




·
MTS Crew
Joined
·
1,230 Posts
Sub-model: 04 Z71 4WD Colly
Tire Size: 245/75R16
Rim Size: 16x8 Offset: +10mm Backspace: 4 7/8"
Wheel Spacers: None
Lift Height: 3" Front 2" Rear.
Lift Components: Front Torsion Keys, Rear Lift Shackle
Flares/Fenders: Stock Z71
Trimming Requirements: None
Any Rubbing:None
Build Thread Link: N/A yet.
Other Important Details:
Pictures:



·
RIP Forrest
Joined
·
12,421 Posts
A
  • Sub-model 2wd Z71
  • Tire Size 35 x 12.50
  • Rim Size 20 x 9. i believe -12mm offset
  • Wheel Spacers only on rear due to axle swap
  • Lift Height front fender to ground 47"
  • Lift Components 3" doetsch lift spindles, 3" torsion crank with tuff country keys, 3" body lift, soa on the rear with helper bags
  • Flares/Fenders Z71 flares
  • Trimming Requirements valence removed, bumper trimmed, body mount not touched
  • Any Rubbing a lil on body mount when offroad
  • Pictures
  • Build Thread Link http://www.355nation.net/forum/projects-build/50182-my-truck.html
  • Other Important Details







·
Registered
Joined
·
277 Posts
I traded in my truck for a family car 2 weeks ago but figured I would still post up my setup I had.

2008 Collorado 4x4, No Lift,

- Ultra 51/50 Wheels, 15x8 with a 5, 2/8th B/S, 31x10.50 BFG AT

They cleared everything at full swing had 2in from the frame at full lock.





·
Registered
Joined
·
316 Posts
BUILD 1:
Z71 4wd
35x12.5
15x8 4" backspacing
No wheel spacers
N/A,9" lift total
4" skyjacker, 3" body lift, 2" crank,soa rear (no aal or shackle)
Z71 flares
None (body mount if preferred)
Rubs on body mount with wheels at full cut

BUILD 2
Z71 4wd
35x12.5
15x8 4" backspacing
Wheel spacers on front (cut axle to much)not needed
Ground to fender 49.5" in front,more in rear
Corp 10bolt sas,waggy lift springs,d44 rear,soa with 1 aal


·
Registered
Joined
·
1,028 Posts
Sub-model: Z71 4x4
Tire Size: 265/75R16. 31.6" diameter, 10.5" width
Rim Size: 16x8" with 4.51" backspace
Wheel Spacers: None
Hub to Fender: ~24.75" Front, ~25.25" Rear
Lift Components: Skyjacker subframe lift, Skyjacker leaf springs, 1" CST Shackle
Flares: Z71 flares
Trimming Requirements: Front mud flap removal required. Lower valance removed prior to instal.
Rubbing: No
Build Thread Link: Hosted on www.Canada355.ca



Note: Hub to fender measurements were taken 5 days after lift installation, and are not super accurate.


·
Registered
Joined
·
1,672 Posts
Sub-model: 2006 Crew Cab, Z71 2wd.
Tire Size: 305/70/16 (32.8" x 12")
Rim Size: KMC Enduro (XD122) 16"x8", 4.5" backspace.
No Wheel Spacers
Lift Height (hub to fender measurement): don't know, to be measured.
Lift Components: Z85 3" lift spindles, and ~ 2" crank.
Flares/Fenders: stock Z71 fenders.
Trimming Requirements: body mount, front fenders on the edge next to the door, and plastic portion of the bumper.
Any Rubbing: on sway bar, full lock.

Pics will be added later on.
