SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

Jump to Latest
64K views 150 replies 61 participants last post by  Carlosgraniel
#1 · (Edited)
SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

The SuperMod DTRL kit converts your DayTime Running Head Lights to your upper bumper lights (DRL's).

Compatibility: Some late model 2006 and ALL 2007 to 2012 Chevy Colorado and GMC Canyon trucks.

Please check your local laws if this mod complies.

WARNING! Please observe the DTRL module installation.
If installed backwards, It will cause the fuses to blow and possibly damage your BCM (Body Control Module).

Prices: Click on PAYPAL link below.
DTRL Kit USA $65.00 includes shipping.
DTRL Kit Canada $80.00 Includes shipping.

or

Payment: PAYPAL 1auction@optonline.net

Benefits:
Looks awesome!
Easy installation, less than 5 minutes.
No wire cutting or splicing.
fuse protected.
Easy to restore back to factory.

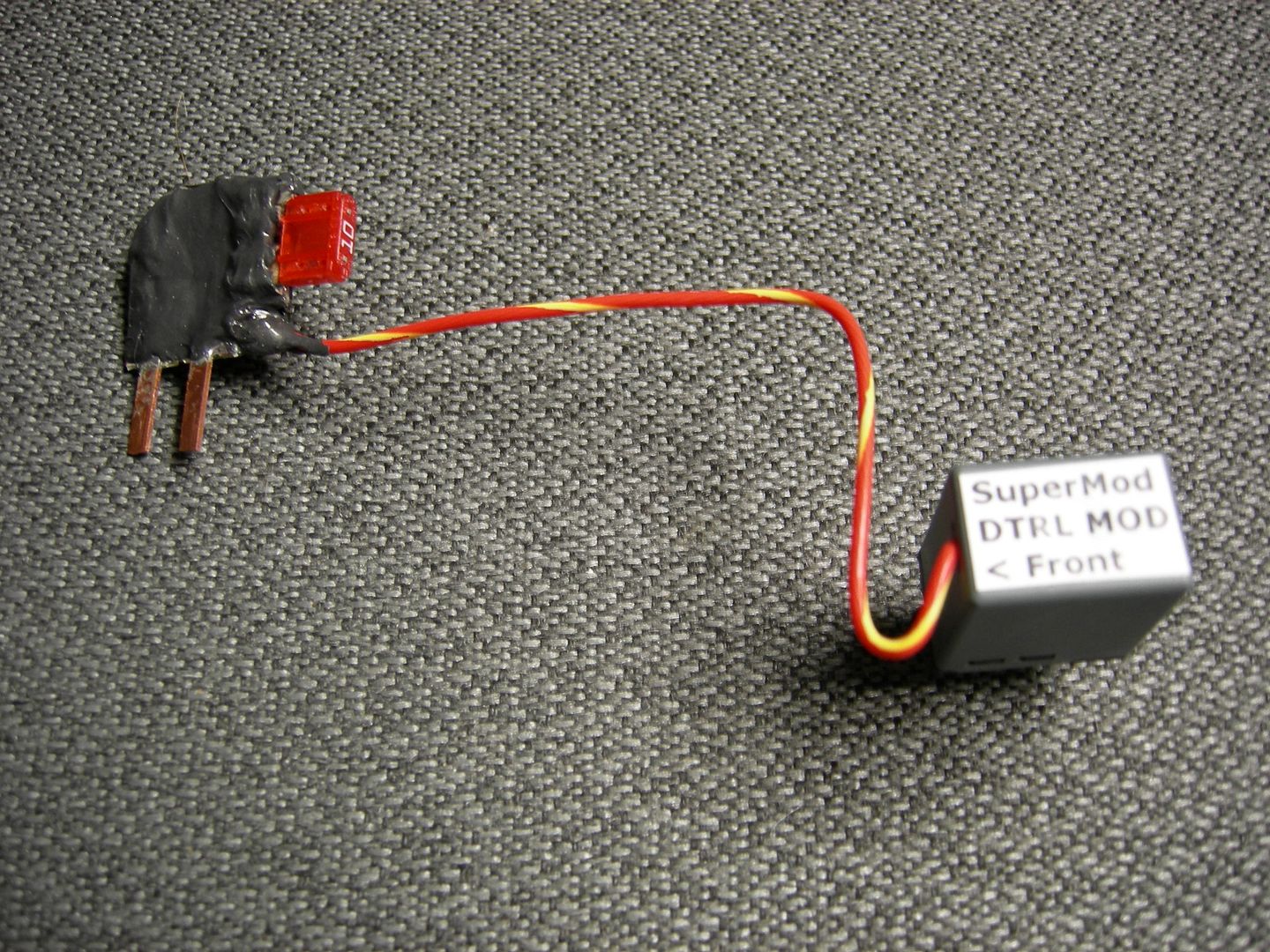

SuperMod DTRL Module:


Before:


After:


Installed:





Installation Instructions:
1. Vehicle off.
2. Remove fuse box cover. The relay and fuse location will be written inside the fuse box cover.
3. Locate and remove the DRL Relay.
4. Remove the Front Parking Lamp 10 amp fuse located on the bottom left of the fuse box.
5. As shown in above pictures, place the relay so that the wire coming out of it is facing towards the front of the truck and insert module where the Front Parking lamp fuse was.

#12 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

Supermod, I know you were looking into this already & I'm certain that by the looks of the 'fuse' portion of your kit you've taken care of this, but this set-up looks very familiar to the set-up a few people have used earlier that turned all the parking lights on (not just the markers) and potentially backfed the system.

Can you explain what you did to prevent this? Like I said, you've got some SMM (supermod magic) going on with the 'fuse' side of the kit, and I reckon that was to take care of the previous problems with this set-up.

#15 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

Trial & Error. Haha If he told you. He'd have to kill you... hahaha Than the big secret would be out.

hmmbagodden said:
Supermod, I know you were looking into this already & I'm certain that by the looks of the 'fuse' portion of your kit you've taken care of this, but this set-up looks very familiar to the set-up a few people have used earlier that turned all the parking lights on (not just the markers) and potentially backfed the system.

Can you explain what you did to prevent this? Like I said, you've got some SMM (supermod magic) going on with the 'fuse' side of the kit, and I reckon that was to take care of the previous problems with this set-up.
Click to expand...

#17 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

Awesome -- yea, having another external relay under there sure makes it hard to get the fuse box on & off!

For all you guys who are running HIDs, this mod is a must have!

#20 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

Ok how about taking the DTRL of an 2005 colly and use the LED's for DTRL instead of the parking lights on top? How to do that?

Save
Reply Quote Like Like
#24 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

GregDAP said:
Paypal sent!!!!!!!!!!!!!
Click to expand...

Shipped! :th_woot:

06Stinger said:
Hey James!

Put that on the to do list at our next Modathon.

(In other words, have one ready for me when I come up please)
Click to expand...
Will do Buddy! :D

#30 · (Edited)
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

James installed his Day Time Running Light Mod on my truck yesterday at the Famous Dave's BBQ Meet. This mod converts daytime running lights from the headlights to the parking lights. Simple and elegant solution for the newer trucks when you want to run DRL with HID's.





Good stuff!
:supermod2: :supermod: :supermod2:

#32 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

This is a lot less bulkier than the relay set-up I had prior. Just remember to bend the assembly towards the passenger side after placing it in the front running lamps fuse spot. Otherwise you can't get the fuse box cover on because it's too tall for the beveled edge of the fuse box.

Totally cleaned up my fuse box!

#33 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

I'm working on making the interface smaller. The older fuse box lids stood a little taller than the later models. So rev. 2 will be release today. All previous models can be retrofitted to Rev. 2 by shipping it back to me otherwise it will have the same electrical components but just smaller is size.

This post has been deleted
#34 ·
re: SuperMod DayTime Running Light (DTRL) Kit for the Chevy Colorado & GMC Canyon Trucks

Finally got my kit installed, like hmmbagodden I had to bend it over a little, but not too bad. Still kind of a tight fit.

Loving it! Works great, and honestly looks cooler IMHO.

Haven't decided if I'm going to ship it back for the smaller one, yet. USPS keeps loosing things from SuperMod, which is getting annoying.
